12V 24V Automotive Chassis Domain Controller With 6-axis IMU
12V 24V Automotive Chassis Domain Controller With 6-axis IMU
12V 24V Automotive Chassis Domain Controller With 6-axis IMU
12V 24V Automotive Chassis Domain Controller With 6-axis IMU

12V 24V Automotive Chassis Domain Controller With 6-axis IMU

Get Latest Price
Payment Type:T/T
Incoterm:FOB,CFR,CIF,EXW,FCA
Min. Order:1
Transportation:Ocean,Land,Air
Port:ningbo,shanghai,guangzhou
Contact Now
Product Description
Product Attributes
Packaging & Delivery
Product Description
Other information
Product Attributes

Model No.: ASC-06

Brand: Newbase

Packaging & Delivery
Package Type : Cartons and wooden boxes
Picture Example :

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
Product Description

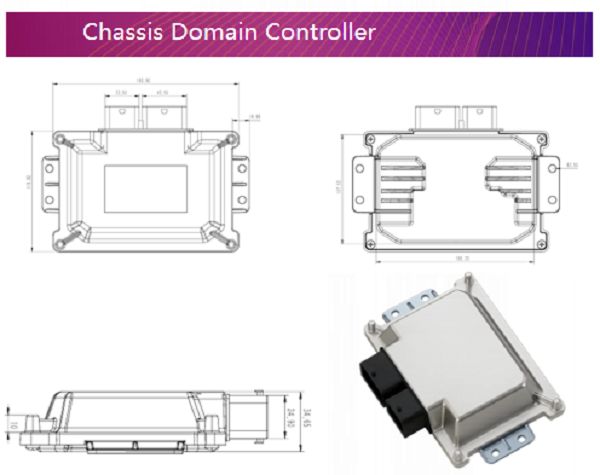

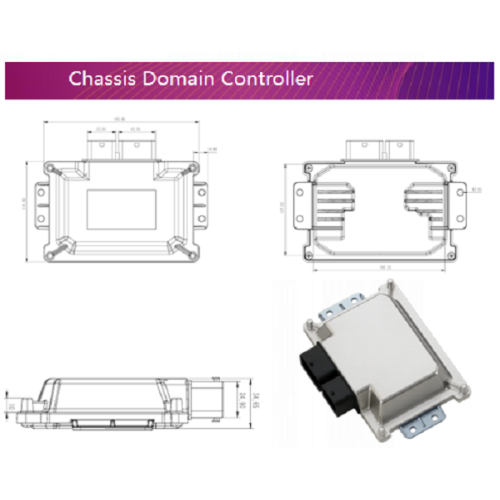

Chassis Domain Controller (Model: ASC-06)


Advanced Electronic Control Suspension-Centric Domain Controller for Global Automotive Applications

Product Specifications
default name

Processor & System Compatibility


Automotive-grade POWER architecture (engineered for harsh automotive operating conditions)
ASIL-D certified (meets the strictest functional safety requirements for automotive systems)
Dual-voltage support: Compatible with 12V and 24V vehicle electrical systems


Wake-up Functionality


Supports local/partial bus wake-up (optimizes energy efficiency in vehicle standby modes)
Compatible with multi-protocol sensor signals: PSI5, PWM, and RAW AD


Input Channels


Multiple independent RAW AD analog input channels (for diverse sensor signal acquisition)
Multiple independent PSI5 sensor signal input channels (supports high-precision sensor integration)


Current Control Channels


Hardware-free configurable control: Switch between high-side/low-side control without modifying hardware
Multi-channel current output: Each channel provides 2A-5A current driving capability
High-frequency PWM: Up to 20kHz frequency for precise actuation control
Adjustable current closed-loop control: Forward/bidirectional adjustment (response speed ≥1A/ms)
Customizable chatter control logic (Chopper + Dither) (reduces component wear & improves smoothness)
Supports up to 12 H-bridge spring control interfaces (enables complex suspension adjustment)


Safety & Integrated Sensors


Built-in temperature sensor: Real-time self-monitoring to prevent overheating
Integrated 6-axis IMU: Combines 3-axis accelerometer + 3-axis gyroscope (reduces external sensor layout complexity & BOM costs)


Communication Interfaces


2 CAN channels (supports CAN FD for high-bandwidth data transmission)
1 K-Line/LIN channel (compatible with high/low-speed body bus networks)


Design & Durability


32+48-pin plug-in design: Enhances installation compatibility & connection safety
IP67 ingress protection rating: Rugged construction suitable for exterior cabin mounting (resists dust, water, & harsh environments)

Shock AbsorbersShock Absorbers

Key Benefits for Your Business


Safety Compliance: ASIL-D certification aligns with global regulations (e.g., ISO 26262), reducing your product’s regulatory risks
Platform Flexibility: Dual-voltage support & configurable controls adapt to passenger/commercial vehicle models
Cost Efficiency: Integrated sensors (IMU) & modular design cut external component needs & assembly complexity
Reliability: IP67 rating ensures consistent performance in extreme automotive environments (temperature, vibration, moisture)

Ready to integrate the ASC-06 into your chassis systems? Let’s discuss bulk pricing, customization options, or technical support tailored to your project. Contact our global sales team today to move forward.
